TAHA Cabrio

Utility Amphibious All Terrain Vehicle

The best solution for the most challenging conditions

The utility amphibious all-terrain vehicle “TAHA Cabrio” is designed to operate in the most extreme natural conditions and on any type of terrain, is capable of overcoming obstacles up to 1 meter high and floating on water.

Technical data

Max speed

40 km/h

Max. speed on water

6 km/h

Payload

1 300 kg

Passenger capacity

9 (including the pilot)

Dry weight

2 270 kg

Max gradeability

40°

Tilt

30°

Height of obstacle to be overcome

up to 1 m

Autonomous work

up to 65 h

Fuel consumption

5-8 l/h

Ground clearance

600 mm

Temperature conditions

from -40 to +40 deg C

Features

Unique ultra-low pressure tires

The patented wheel design has several advantages:

the tires are less prone to damage due to their elasticity;
they can be inflated with exhaust gas at the touch of a button (thanks to this feature, the platform is able to overcome difficult obstacles);
the design and tread of the wheels provide a high level of traction with the ground and allow the platform to move on water.

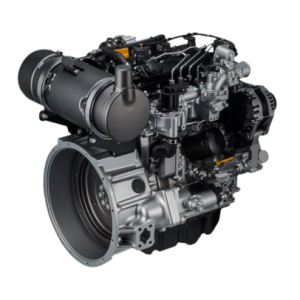

Efficient and eco-friendly engine

The high-tech and environmentally friendly Korean-made Doosan engine meets Stage V/Tier-4 emission standards and delivers high torque and fuel efficiency with low noise and vibration.

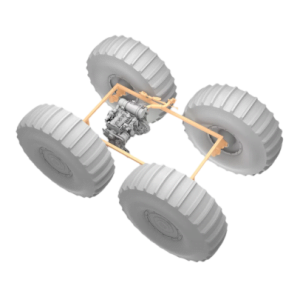

Less is more

Robust suspension design that lacks any traditional suspension components such as springs, shocks or sticks. This results in fewer breakdowns and costs.
